ZIBGEE + GLYPH WITH ARDUINO IDE

Step 1: Hardware Required

1. One client device [Glyph C6 OR GLYPH H2]
2. One Server device [Glyph C6 OR GLYPH H2]

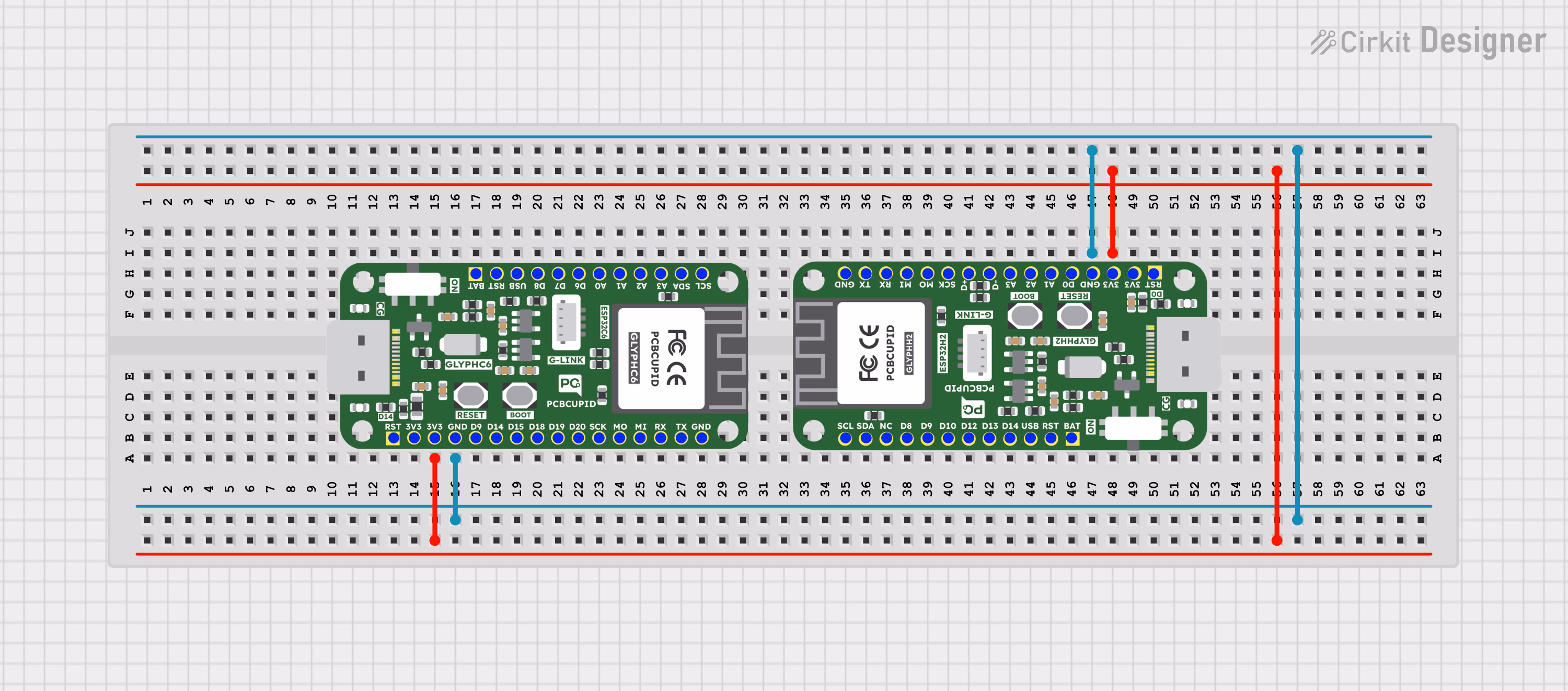

Step 2: Circuit Diagram

Step 3A: Prerequisites to achieve Zigbee communication

1. Open Arduino IDE.

warning

Make sure to update your Arduino IDE to a version greater than 3.1.0 Download and install it from the Arduino website.

info

Recommended always download the latest version

• Go to File > Preferences.
• In the Additional Boards Manager URLs field, add:
  https://espressif.github.io/arduino-esp32/package_esp32_index.json

2. ESP32 Board Definitions: Install ESP32 board support in the Arduino IDE.

• Go to Tools > Board > Boards Manager.
• Search for “ESP32” and install ESP32 by Espressif Systems and set it to the latest version

Step 3B: Setup Co-Ordinator

Plug-in your GLYPH development board, it can either be GLYPH C6 or GLYPH H2. We'll setup any of this board as coordinator/router device. Thus, the coordinator device becomes the switch to control the LED on other device.

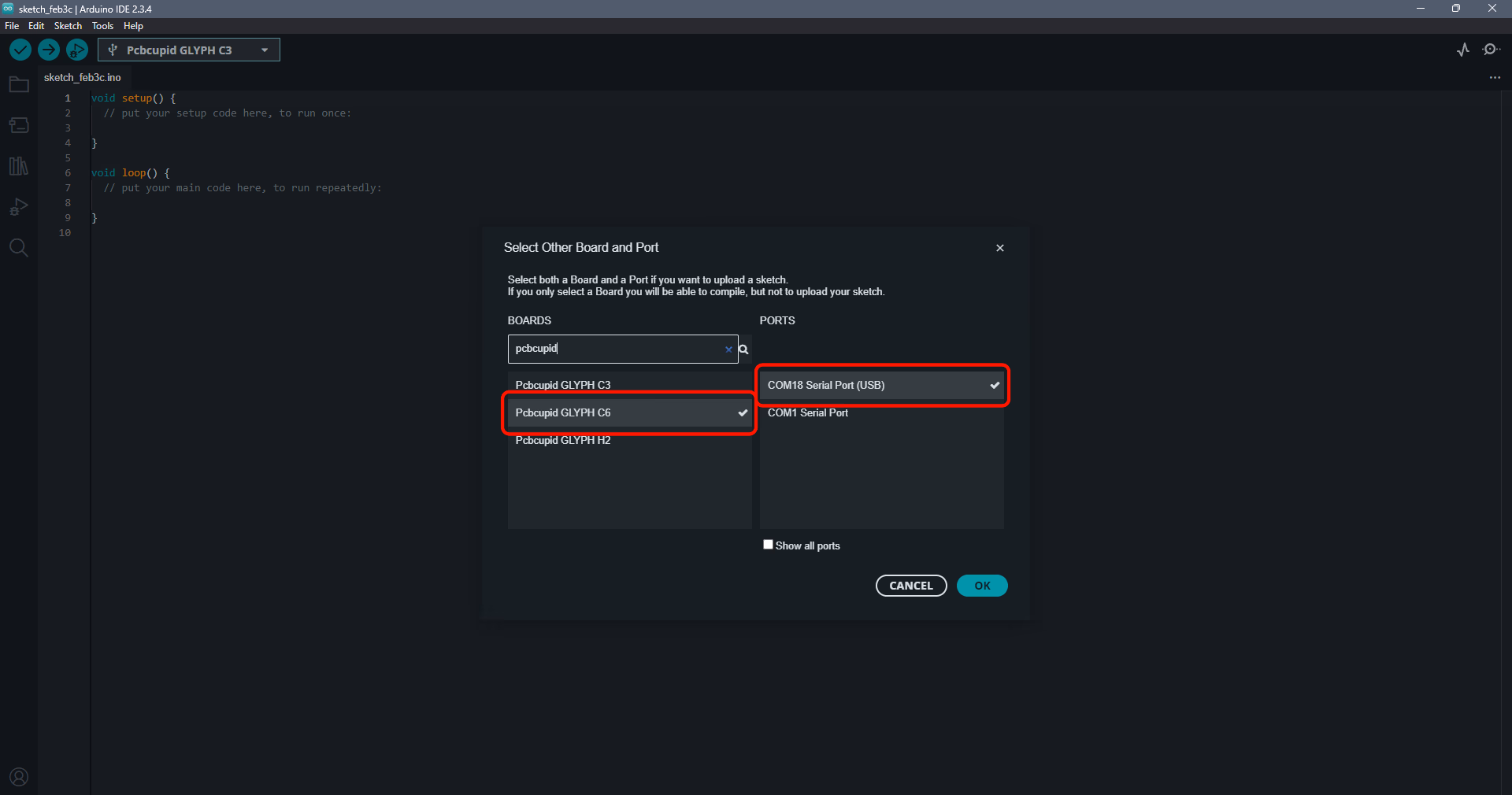

• Now go to select other board and port > Pcbcupid Glyph C6 > Select your COM port.

Now you can use the code below for the co-ordinator to act as a switch:

#ifndef ZIGBEE_MODE_ZCZR
#error "Zigbee coordinator mode is not selected in Tools->Zigbee mode"
#endif

#include "Zigbee.h"

/* Zigbee switch configuration */
#define SWITCH_ENDPOINT_NUMBER 5

#define GPIO_INPUT_IO_TOGGLE_SWITCH 9
#define PAIR_SIZE(TYPE_STR_PAIR)    (sizeof(TYPE_STR_PAIR) / sizeof(TYPE_STR_PAIR[0]))

typedef enum {
  SWITCH_ON_CONTROL,
  SWITCH_OFF_CONTROL,
  SWITCH_ONOFF_TOGGLE_CONTROL,
  SWITCH_LEVEL_UP_CONTROL,
  SWITCH_LEVEL_DOWN_CONTROL,
  SWITCH_LEVEL_CYCLE_CONTROL,
  SWITCH_COLOR_CONTROL,
} SwitchFunction;

typedef struct {
  uint8_t pin;
  SwitchFunction func;
} SwitchData;

typedef enum {
  SWITCH_IDLE,
  SWITCH_PRESS_ARMED,
  SWITCH_PRESS_DETECTED,
  SWITCH_PRESSED,
  SWITCH_RELEASE_DETECTED,
} SwitchState;

static SwitchData buttonFunctionPair[] = {{GPIO_INPUT_IO_TOGGLE_SWITCH, SWITCH_ONOFF_TOGGLE_CONTROL}};

ZigbeeSwitch zbSwitch = ZigbeeSwitch(SWITCH_ENDPOINT_NUMBER);

/********************* Zigbee functions **************************/
static void onZbButton(SwitchData *button_func_pair) {
  if (button_func_pair->func == SWITCH_ONOFF_TOGGLE_CONTROL) {
    // Send toggle command to the light
    Serial.println("Toggling light");
    zbSwitch.lightToggle();
  }
}

/********************* GPIO functions **************************/
static QueueHandle_t gpio_evt_queue = NULL;

static void IRAM_ATTR onGpioInterrupt(void *arg) {
  xQueueSendFromISR(gpio_evt_queue, (SwitchData *)arg, NULL);
}

static void enableGpioInterrupt(bool enabled) {
  for (int i = 0; i < PAIR_SIZE(buttonFunctionPair); ++i) {
    if (enabled) {
      enableInterrupt((buttonFunctionPair[i]).pin);
    } else {
      disableInterrupt((buttonFunctionPair[i]).pin);
    }
  }
}

/********************* Arduino functions **************************/
void setup() {
  Serial.begin(115200);

  //Optional: set Zigbee device name and model
  zbSwitch.setManufacturerAndModel("Espressif", "ZigbeeSwitch");

  //Optional to allow multiple light to bind to the switch
  zbSwitch.allowMultipleBinding(true);

  //Add endpoint to Zigbee Core
  Serial.println("Adding ZigbeeSwitch endpoint to Zigbee Core");
  Zigbee.addEndpoint(&zbSwitch);

  //Open network for 180 seconds after boot
  Zigbee.setRebootOpenNetwork(180);

  // Init button switch
  for (int i = 0; i < PAIR_SIZE(buttonFunctionPair); i++) {
    pinMode(buttonFunctionPair[i].pin, INPUT_PULLUP);
    /* create a queue to handle gpio event from isr */
    gpio_evt_queue = xQueueCreate(10, sizeof(SwitchData));
    if (gpio_evt_queue == 0) {
      Serial.println("Queue creating failed, rebooting...");
      ESP.restart();
    }
    attachInterruptArg(buttonFunctionPair[i].pin, onGpioInterrupt, (void *)(buttonFunctionPair + i), FALLING);
  }

  // When all EPs are registered, start Zigbee with ZIGBEE_COORDINATOR mode
  if (!Zigbee.begin(ZIGBEE_COORDINATOR)) {
    Serial.println("Zigbee failed to start!");
    Serial.println("Rebooting...");
    ESP.restart();
  }

  Serial.println("Waiting for Light to bound to the switch");
  //Wait for switch to bound to a light:
  while (!zbSwitch.bound()) {
    Serial.printf(".");
    delay(500);
  }

  // Optional: List all bound devices and read manufacturer and model name
  std::list<zb_device_params_t *> boundLights = zbSwitch.getBoundDevices();
  for (const auto &device : boundLights) {
    Serial.printf("Device on endpoint %d, short address: 0x%x\r\n", device->endpoint, device->short_addr);
    Serial.printf(
      "IEEE Address: %02X:%02X:%02X:%02X:%02X:%02X:%02X:%02X\r\n", device->ieee_addr[7], device->ieee_addr[6], device->ieee_addr[5], device->ieee_addr[4],
      device->ieee_addr[3], device->ieee_addr[2], device->ieee_addr[1], device->ieee_addr[0]
    );
    char *manufacturer = zbSwitch.readManufacturer(device->endpoint, device->short_addr, device->ieee_addr);
    char *model = zbSwitch.readModel(device->endpoint, device->short_addr, device->ieee_addr);
    if (manufacturer != nullptr) {
      Serial.printf("Light manufacturer: %s\r\n", manufacturer);
    }
    if (model != nullptr) {
      Serial.printf("Light model: %s\r\n", model);
    }
  }

  Serial.println();
}

void loop()
{
  // Handle button switch in loop()
  uint8_t pin = 0;
  SwitchData buttonSwitch;
  static SwitchState buttonState = SWITCH_IDLE;
  bool eventFlag = false;


  /* check if there is any queue received, if yes read out the buttonSwitch */
  if (xQueueReceive(gpio_evt_queue, &buttonSwitch, portMAX_DELAY))
  {
    pin = buttonSwitch.pin;
    enableGpioInterrupt(false);
    eventFlag = true;
  }
  while (eventFlag)
  {
    bool value = digitalRead(pin);
    switch (buttonState) {
      case SWITCH_IDLE:           buttonState = (value == LOW) ? SWITCH_PRESS_DETECTED : SWITCH_IDLE; break;
      case SWITCH_PRESS_DETECTED: buttonState = (value == LOW) ? SWITCH_PRESS_DETECTED : SWITCH_RELEASE_DETECTED; break;
      case SWITCH_RELEASE_DETECTED:
        buttonState = SWITCH_IDLE;
        /* callback to button_handler */
        (*onZbButton)(&buttonSwitch);
        break;
      default: break;
    }
    if (buttonState == SWITCH_IDLE)
    {
      enableGpioInterrupt(true);
      eventFlag = false;
      break;
    }
    vTaskDelay(10 / portTICK_PERIOD_MS);
  }


  // print the bound lights every 10 seconds
  static uint32_t lastPrint = 0;
  if (millis() - lastPrint > 10000)
  {
    lastPrint = millis();
    zbSwitch.printBoundDevices(Serial);
  }
}

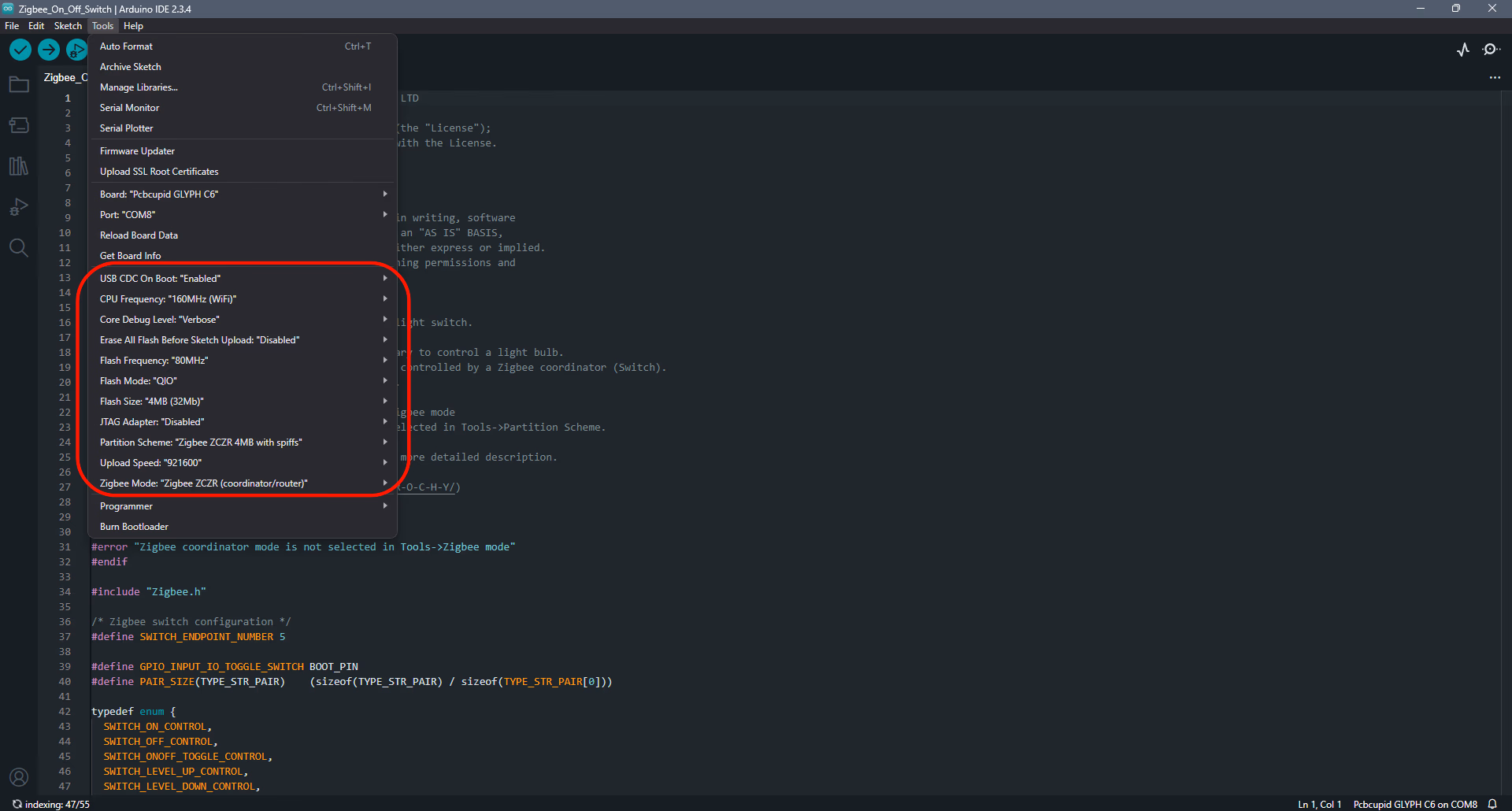

Configure Co-Ordinator

To configure the board, Go to Tools and set the following configuration keys in place.

1. Make sure the USB CDC On Boot is “Enabled”
2. Set the Core Debug level to “Verbose”
3. Set the flash size to “4MB (32Mb)”
4. Make sure that the partition scheme is set to: “Zigbee ZCZR 4MB with spiffs”
5. Set the Zigbee mode: “Zigbee ZCZR (coordinator/router)”

Why do we do these settings?

1. Enable USB CDC on Boot: Activates USB serial communication on startup for easier debugging and setup.
2. Set Core Debug Level to Verbose: Provides detailed log output to help troubleshoot issues during development.
3. Set Flash Size to 4MB (32Mb): Ensures sufficient storage for firmware, Zigbee stack, and additional files.
4. Set Partition Scheme to “Zigbee ZCZR 4MB with spiffs”: Allocates memory for both Zigbee network functionality and SPIFFS file storage.
5. Set Zigbee Mode to “Zigbee ZCZR (coordinator/router)”: Configures the device as a coordinator/router for managing or extending a Zigbee network.

• Finally! compile, upload the code and start with programming the end-device.

Step 3C: Setup the end-device.

The end-device is the one that receives the signal from the coordinator and completes the action initiated by the coordinator it responds to. Thus, a Zigbee network can occupy up to 240 devices practically. These end devices form a connection with the coordinator through the same network ID, making communication possible. The communication can be unicast, multicast or broadcast.

Plug in the GLYPH-H2 (GLYPH C6 can be used here as well) board. Here the GLYPH-H2 we'll act as a end- device, which on receiving the signal from co-ordinator glows it’s in-built LED.

• Now go to select other board and port > Pcbcupid Glyph H2 > Select your COM port.

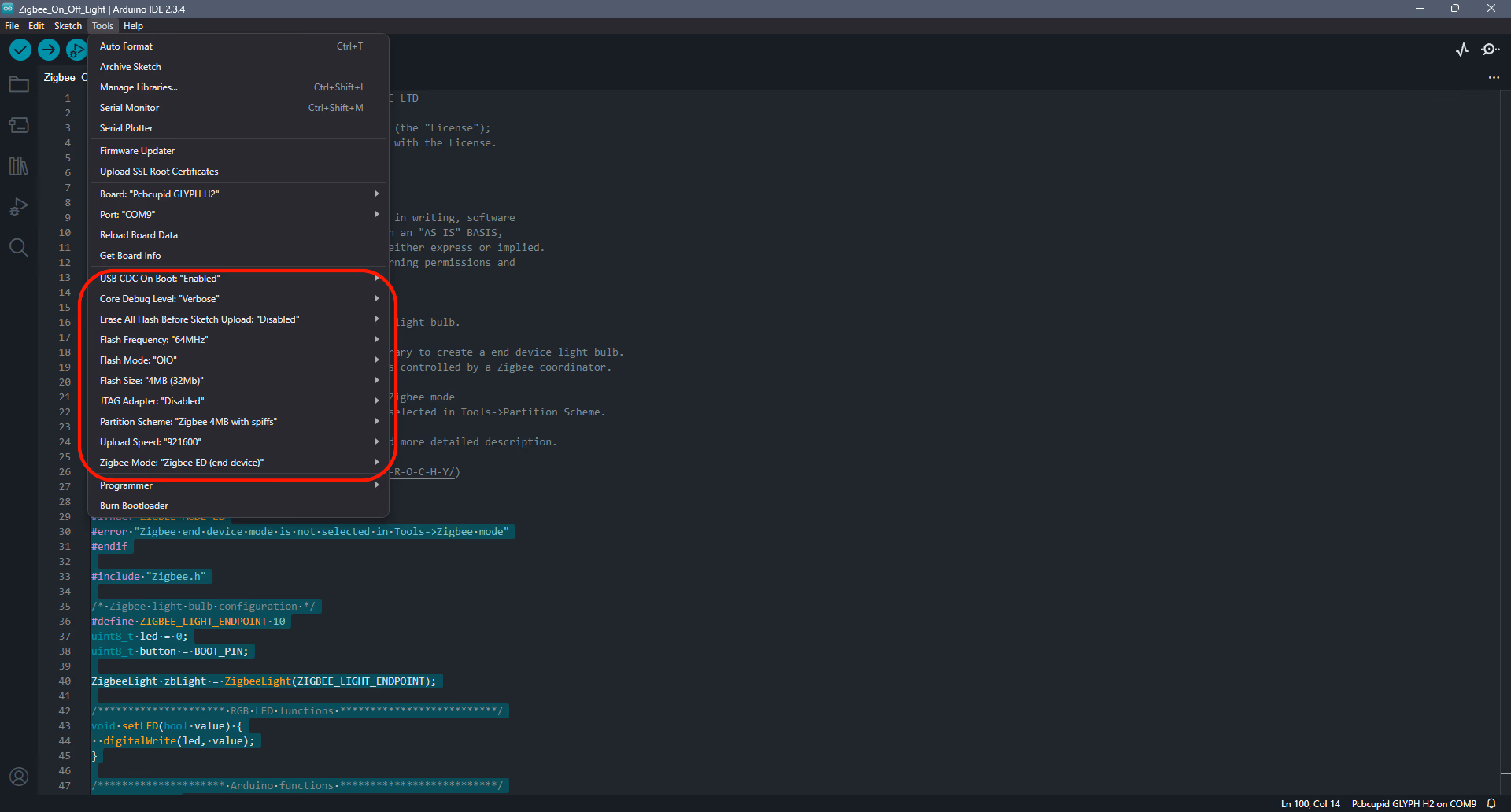

Configure end-device

• To configure the board, Go to Tools and set the following configuration keys in place.

1. Make sure the USB CDC On Boot is “Enabled”
2. Set the Core Debug level to “Verbose”
3. Set the flash size to “4MB (32Mb)”
4. Make sure that the partition scheme is set to: “Zigbee 4MB with spiffs”
5. Set the Zigbee mode: “Zigbee ED (End device)”

Now you can use the code below for the end-device to act as a light (controlled device):

#ifndef ZIGBEE_MODE_ED
#error "Zigbee end device mode is not selected in Tools->Zigbee mode"
#endif

#include "Zigbee.h"

/* Zigbee light bulb configuration */
#define ZIGBEE_LIGHT_ENDPOINT 10
uint8_t led = 0;
uint8_t button = BOOT_PIN;

ZigbeeLight zbLight = ZigbeeLight(ZIGBEE_LIGHT_ENDPOINT);

/********************* RGB LED functions **************************/
void setLED(bool value) {
  digitalWrite(led, value);
}

/********************* Arduino functions **************************/
void setup() {
  Serial.begin(115200);

  // Init LED and turn it OFF (if LED_PIN == RGB_BUILTIN, the rgbLedWrite() will be used under the hood)
  pinMode(led, OUTPUT);
  digitalWrite(led, LOW);

  // Init button for factory reset
  pinMode(button, INPUT_PULLUP);

  //Optional: set Zigbee device name and model
  zbLight.setManufacturerAndModel("Espressif", "ZBLightBulb");

  // Set callback function for light change
  zbLight.onLightChange(setLED);

  //Add endpoint to Zigbee Core
  Serial.println("Adding ZigbeeLight endpoint to Zigbee Core");
  Zigbee.addEndpoint(&zbLight);

  // When all EPs are registered, start Zigbee. By default acts as ZIGBEE_END_DEVICE
  if (!Zigbee.begin()) {
    Serial.println("Zigbee failed to start!");
    Serial.println("Rebooting...");
    ESP.restart();
  }
  Serial.println("Connecting to network");
  while (!Zigbee.connected()) {
    Serial.print(".");
    delay(100);
  }
  Serial.println();
}

void loop()
{
  // Checking button for factory reset
  if (digitalRead(button) == LOW)
  {  // Push button pressed
    // Key debounce handling
    delay(100);
    int startTime = millis();
    while (digitalRead(button) == LOW)
    {
      delay(50);
      if ((millis() - startTime) > 3000)
      {
        // If key pressed for more than 3secs, factory reset Zigbee and reboot
        Serial.println("Resetting Zigbee to factory and rebooting in 1s.");
        delay(1000);
        Zigbee.factoryReset();
      }
    }
    // Toggle light by pressing the button
    zbLight.setLight(!zbLight.getLightState());
  }
  delay(100);
}

-Compile and run the code and observe the serial monitor to get insights on how the code is working.

Some additional things to remember would be:

1. In the code “#define GPIO_INPUT_IO_TOGGLE_SWITCH 9” do not forget to add the GPIO pin that corresponds to the in-built LED/Button pin in GLYPH-H2/GLYPH-C6 or any other glyph board you connect.
2. Always set the partition scheme relevant to the device you want to set it as - coordinator or end device.

info

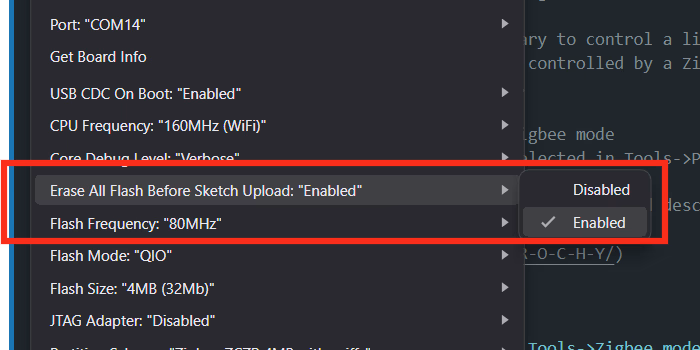

If the device keeps continuously resetting, go to Tools> Erase all flash before sketch upload> Enabled. This will erase all the memory from the current board and gives a window of 180 seconds to reconfigure a new board to join the Zigbee network.

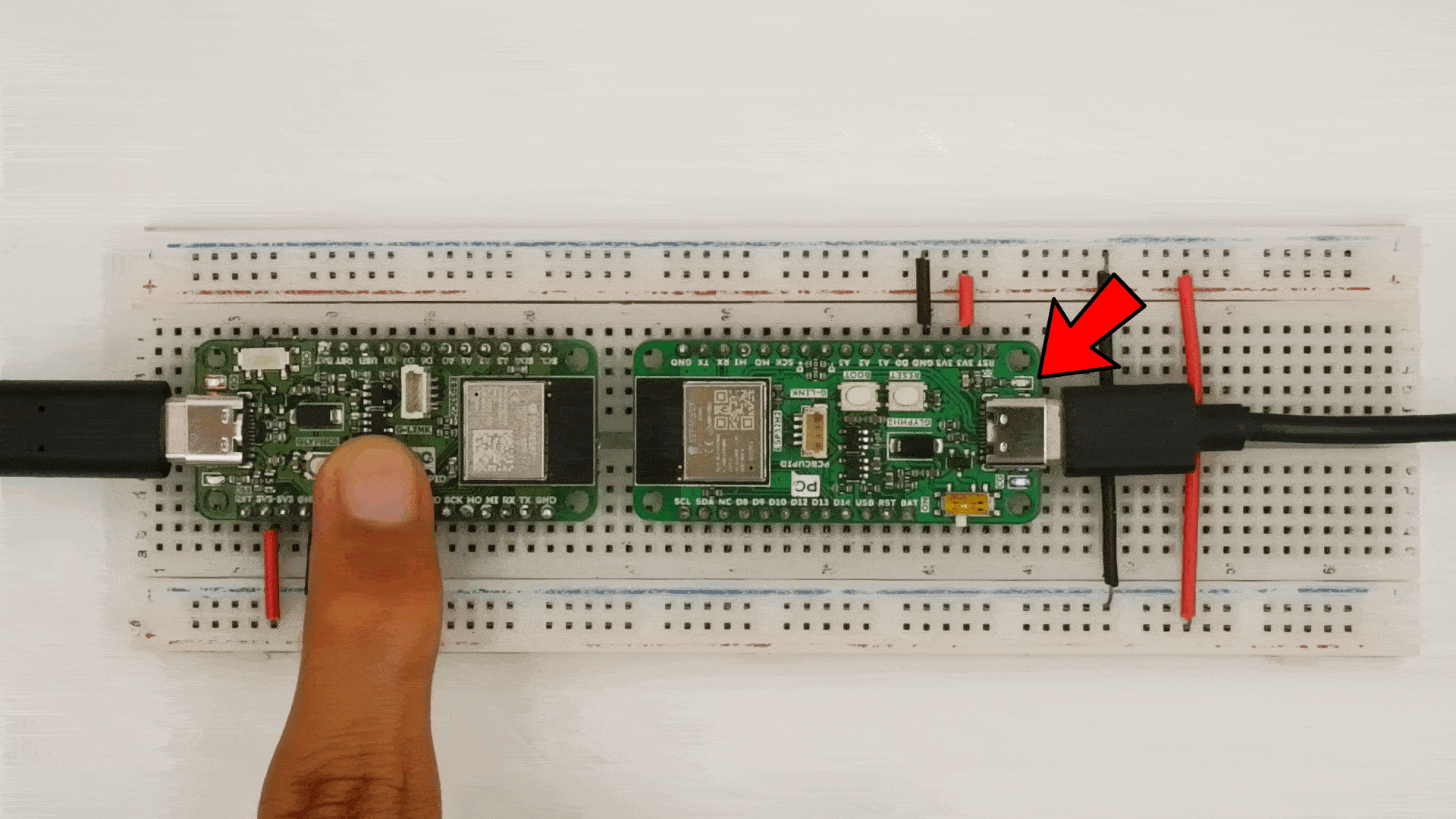

Step 4: Observe the Output on Serial Monitor

Open the serial monitor to observe the output along with the physical hardware:
