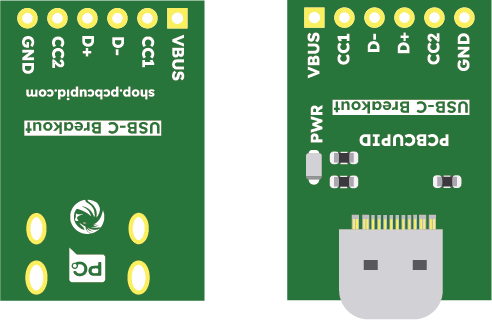

A USB-C breakout board provides easy access to the USB-C connector pins for power and data integration in embedded and prototyping projects. It simplifies development without directly soldering to a compact USB-C port.
Pin Configuration
- VBUS : +5V power from USB-C
- CC1 : Configuration Channel 1 (used for cable orientation and power negotiation)
- CC2 : Configuration Channel 2 (used for cable orientation and power negotiation)
- D+ : USB 2.0 Data Positive
- D- : USB 2.0 Data Negative
- GND : Ground
Key Features
- Breaks out USB-C pins to standard headers.
- Supports power and data lines.
- Compact and easy-to-integrate design.
- Ideal for rapid prototyping.
Applications
- Custom PCB development
- USB-powered embedded systems
- Charging and power delivery projects
- Testing USB-C functionality
⚠️ Precaution Note
- Ensure correct voltage and current ratings
- Verify CC pin configuration for proper power negotiation
- Avoid short circuits during prototyping
