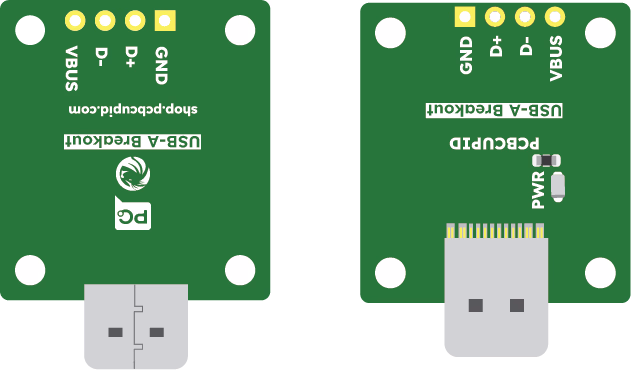

A USB-A MALE is a small PCB that takes a standard USB-A male plug (like the plug end of a USB cable) and “breaks out” the 4 (or sometimes 5) USB pins — VBUS (5 V), D+, D-, GND (and sometimes shield / shell) — to easily accessible 2.54 mm (0.1″) spaced solder pads or header pins.
Pin Configuration
- VBUS / 5V : +5V power from USB
- D- : USB Data Negative
- D+ : USB Data Positive
- GND : Ground
Key Features
- Exposes standard USB-A male pins (VBUS, D+, D-, GND) to easily solderable headers/pads.
- Supports 5V power supply for microcontrollers, sensors, and small electronics.
- Provides access to USB data lines for prototyping or debugging USB communication.
- Compact and breadboard-friendly design for DIY projects and enclosures.
- Eliminates the need to cut and splice USB cables, giving a clean, reliable connection.
- Can be used for custom USB devices, IoT boards, and power distribution.
Applications
- Used in industrial test benches to power or interface microcontrollers and diagnostic tools via USB.
- Integrated into control panels for providing stable 5V supply to embedded modules or data-logging devices.
- Helps in firmware flashing, debugging, and maintenance of industrial controllers through USB access points.
- Utilized in prototype development for industrial IoT (IIoT) devices, sensors, and gateways.
- Used in production line fixtures where a reliable USB connector is needed for repeated plugging/unplugging.
⚠️ Precaution Note
- Ensure the USB port can safely supply the required 5V to avoid overheating or port damage.
- Never short VBUS (5V) to GND, as this can damage both the breakout and the USB source.
- Handle D+ and D- data lines carefully—long or loose wires can cause noise or communication errors.
- Use proper soldering and strain relief to prevent connector loosening or accidental pull-outs.
