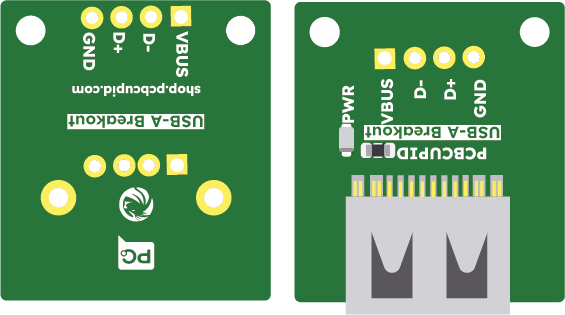

A USB-A FEMALE allows you to plug in USB devices or cables and access power or USB data lines for prototyping, testing, and custom circuit designs.
%20ILLUSTRATION.avif)
Pin Configuration
- VBUS / 5V : Provides +5V to the USB device plugged in
- D- : USB Data Negative
- D+ : USB Data Positive
- GND : Ground
- Shield/GND : Metallic casing connected to ground (optional)
Key Features
- Exposes standard USB-A female pins (VBUS, D+, D-, GND) to easily solderable headers/pads.
- Provides access to power (5V) and USB data lines.
- Compatible with any standard USB device or cable.
- Breadboard-friendly and ideal for quick prototyping.
- Durable socket suitable for repeated plug-and-play use
Applications
- Test benches for USB device validation and diagnostics.
- Production line fixtures requiring repeated USB plug-ins.
- Adding USB access points in control panels or industrial enclosures.
- Firmware flashing or field-updates for embedded industrial devices.
- Used in building IIoT edge devices and gatewaysexperiments.
⚠️ Precaution Note
- Ensure the USB device does not draw more current than the source USB port can supply.
- Avoid shorting 5V and GND — it can damage both the breakout and the host system.
- Keep D+ / D- wires short to prevent signal loss or communication issues.
- Use proper mounting or strain relief to avoid connector damage during repeated insertions.
