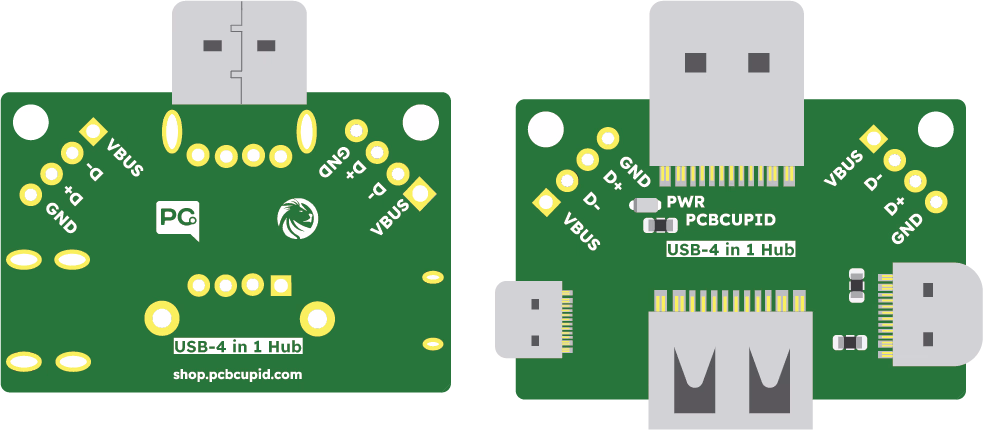

A USB 4 in 1 Hub board designed for signal conversion and development purposes. It breaks out key USB signals—such as VBUS, D+, D-, and GND—into accessible headers, making it ideal for prototyping, testing, debugging, and custom USB interface development.
Pin Configuration
- VBUS / 5V : Provides +5V to the USB device plugged in
- D- : USB Data Negative
- D+ : USB Data Positive
- GND : Ground
Key Features
- Converts one USB interface type to another (e.g., USB to header/pins/terminal).
- Provides easy access to USB signals (VBUS, D+, D-, GND).
- Simple plug-and-play connectivity.
- Compact and lightweight design.
- Ideal for prototyping, testing, and development purposes.
- No active circuitry, purely signal breakout/conversion.
Applications
- USB signal testing and debugging.
- Prototyping USB-based embedded systems.
- Connecting USB lines to development boards.
- Custom cable development and modification.
- USB power extraction (5V) for small projects.
- Lab testing and hardware validation.
⚠️ Precaution Note
- Avoid connecting multiple devices simultaneously to prevent overload.
- Use a powered USB hub when devices draw higher current.
- Keep cable lengths short to avoid communication delays or voltage drops.
